錯誤代碼
Code:
031004

 Head temperature error
打印頭溫度錯誤

? Disconnection, break, skew or damage of the head FFC
? Occurs after receiving a print job and starting

printing
Failure of the thermistor inside the printhead Temperature around the printhead is out of the range from -20 to 80 degrees C.
?打印頭FFC斷開、斷裂、傾斜或損壞
?在收到打印作業并啟動后發生

打印頭內部熱敏電阻失效打印頭周圍的溫度超出了-20到80攝氏度的范圍。

1. Check the head FFC for disconnection, break, skew or damage.
2. Replace the printhead with a new one.
3. Replace the main board with a new one.
1。檢查打印頭FFC是否斷開、斷裂、歪斜或損壞。
2。用新的打印頭更換。
3。所示。更換新的主板。

Main board CN42
主板CN42

錯誤代碼
Code:
031006

Blowout of a fuse error (Head)
保險絲燒斷錯誤(打印頭)

? Failure of the power source for the printhead
1. Failure of the circuit
Disconnection, break, skew, or damage of the head FFC
2. Blowout of fuse on the main board Failure of the printhead
? Occurs at power-on, when replacing the ink cartridge, in-between print passes, and after flushing operation
?打印頭電源故障
1。電路故障
打印頭FFC斷開、斷裂、歪斜或損壞
2。主板上保險絲燒斷打印頭故障
?在接通電源、更換墨盒時、在打印通道之間以及沖洗操作后發生

1. If the fuse has not blown out
? Check the head FFC for disconnection, break, skew or damage.
2. If the fuse has blown out
? Replace the main board with a new one.
3. In the other cases
? Replace the printhead with a new one.
1。如果保險絲沒有燒斷
?檢查打印頭FFC是否斷開、斷裂、歪斜或損壞。
2。如果保險絲燒斷了
?更換主板。
3所示。在其他情況下
?更換新的打印頭。

Main board CN43
主板CN43

故障代碼
Code:
031008

 VBS

overvoltage error
VBS電壓錯誤

1. Head FFC failure (skew, foreign object attached)
2. Failure of the head
3. Failure of the main board
(Occurrence frequency based on past record is 1. > 2. > 3.)
1.打印頭FFC故障(歪斜，有異物附著)
2.打印機頭故障
3.打印機主板故障
(基于過往記錄的發生頻率為1。> 2。> 3)。

1. Check the head FFC.
2. Replace the printhead with a new one.
3. Replace the main board with a new one.
1。檢查打印頭FFC。
2。用新的打印頭更換。
3。更換機器主板。

Main board CN41
主板CN41

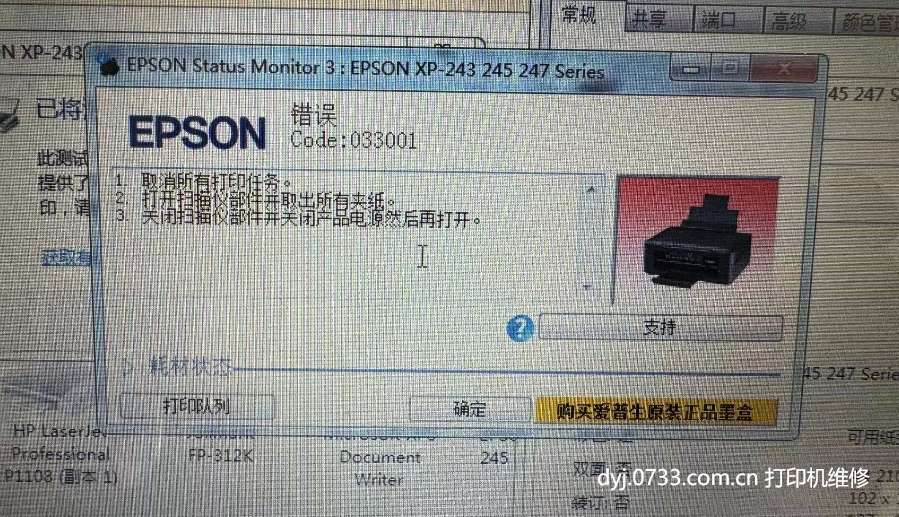

故障代碼
Code:
033001

Blowout of a fuse error (CRCM)
熔斷錯誤(CRCM)

? Failure of the main board
? Occurs at power-on, and during operation for replacing the ink cartridge
?主板故障
?開機時發生，以及在更換墨盒時發生

1. Check the CRCM FFC for disconnection, break, skew or damage.
2. If the error still occurs after the restart, replace the main board.
1。檢查CRCM FFC是否斷開、斷裂、歪斜或損壞。
2。如果重啟后仍然出現錯誤，請更換主板。

Main board CN43
主板CN43
